Description
Dimensions 25 - 30 mm, division 0.005 mm, accuracy ±0.004 mm
Properties:
The probes are designed to allow measurements at the bottom of the blind hole
Extension element enables measurement in deep holes (only in sets)
TK contacts (for sizes over 12 mm)
Adjustment rings
Ratchet
Basic accessories:
Extension elements only in sets, key, screwdriver, adjusting ring
Warranty card, instructions for use, calibration certificate
Packaging: wooden case
Properties:
The probes are designed to allow measurements at the bottom of the blind hole
Extension element enables measurement in deep holes (only in sets)
TK contacts (for sizes over 12 mm)
Adjustment rings
Ratchet
Basic accessories:
Extension elements only in sets, key, screwdriver, adjusting ring
Warranty card, instructions for use, calibration certificate
Packaging: wooden case

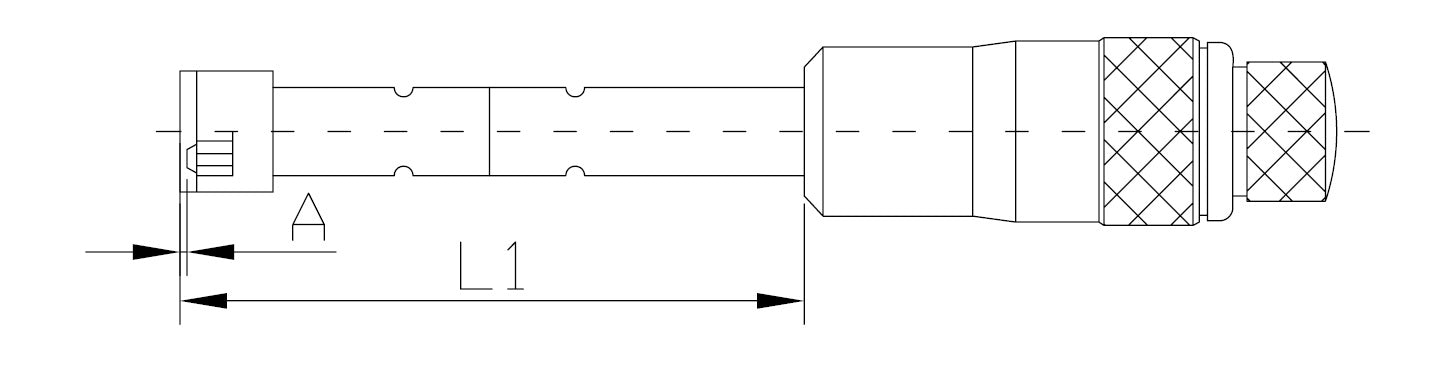

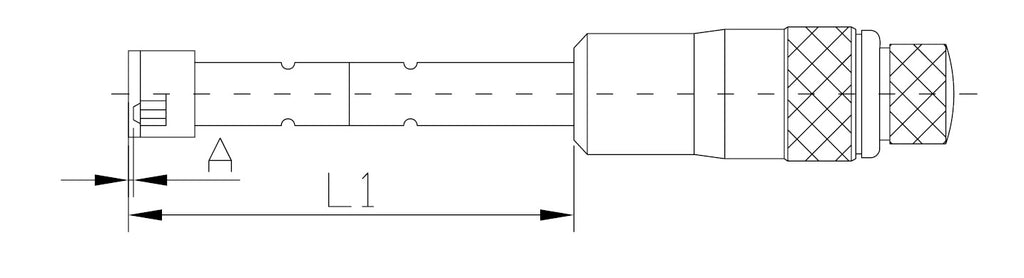

| SIZE | SETTING RINGS | L1 | AND |
|---|---|---|---|
| [mm] | [mm] | [mm] | [mm] |
| 25-30 | 25 | 90 | 0.5 |
