Description
Size 200 mm, division 0.01 mm, accuracy ±0.03 mm
Properties:
0.01mm/0.0005" graduation
Readouts are available either in absolute value (measured to the zero position) or incrementally (temporarily) to the zero position at any point on the scale.
Variants can be selected by pressing the ABS/INC button
Metric/inch switching
Supplied with handles for the most common mounting methods
Available with vertical or horizontal display design
Basic accessories:
LR44 battery
warranty card, user manual, calibration certificate
Properties:
0.01mm/0.0005" graduation
Readouts are available either in absolute value (measured to the zero position) or incrementally (temporarily) to the zero position at any point on the scale.
Variants can be selected by pressing the ABS/INC button
Metric/inch switching
Supplied with handles for the most common mounting methods
Available with vertical or horizontal display design
Basic accessories:
LR44 battery
warranty card, user manual, calibration certificate

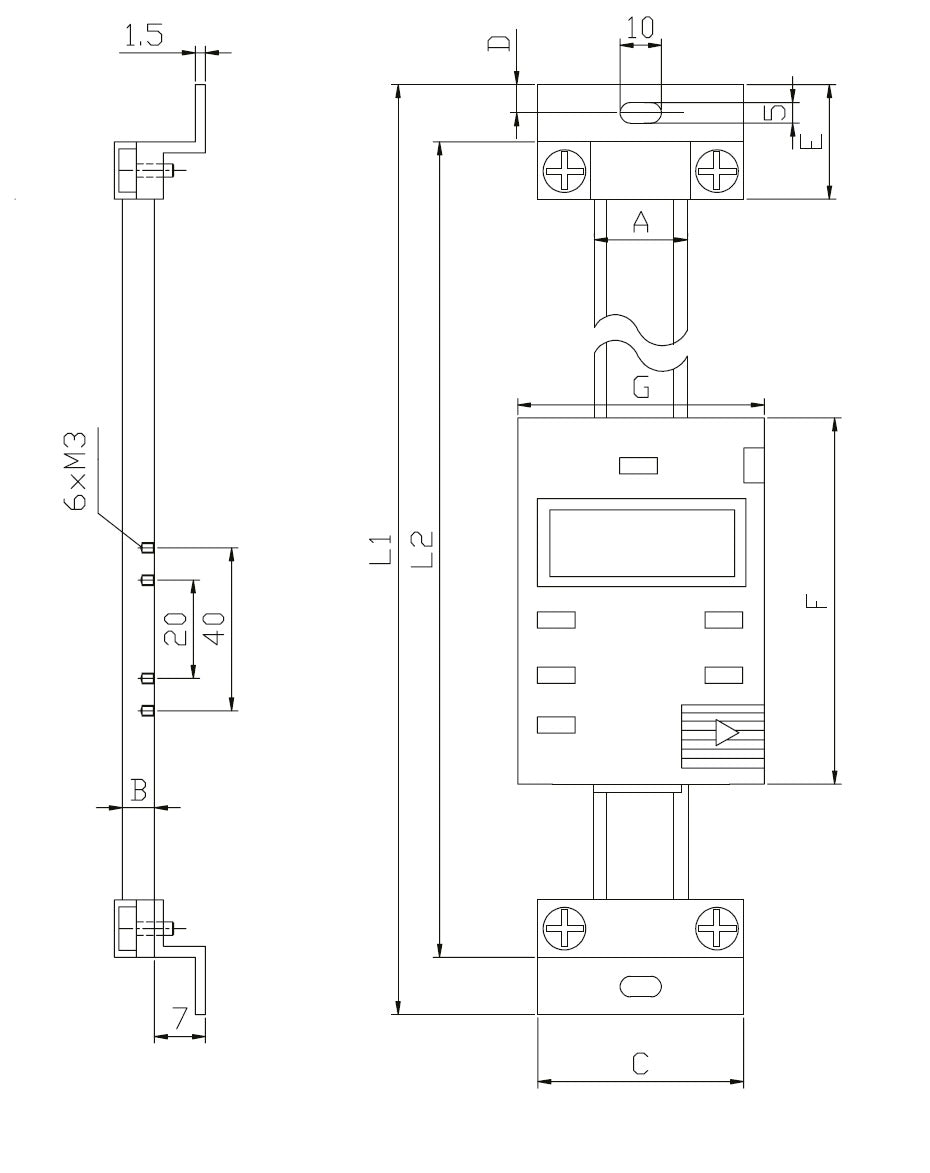

| SIZE | AND | B | C | D | E | F | G | L1 | L2 |
|---|---|---|---|---|---|---|---|---|---|
| [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] |
| 200 | 20 | 4 | 40 | 6 | 24 | 70 | 40 | 344 | 320 |
