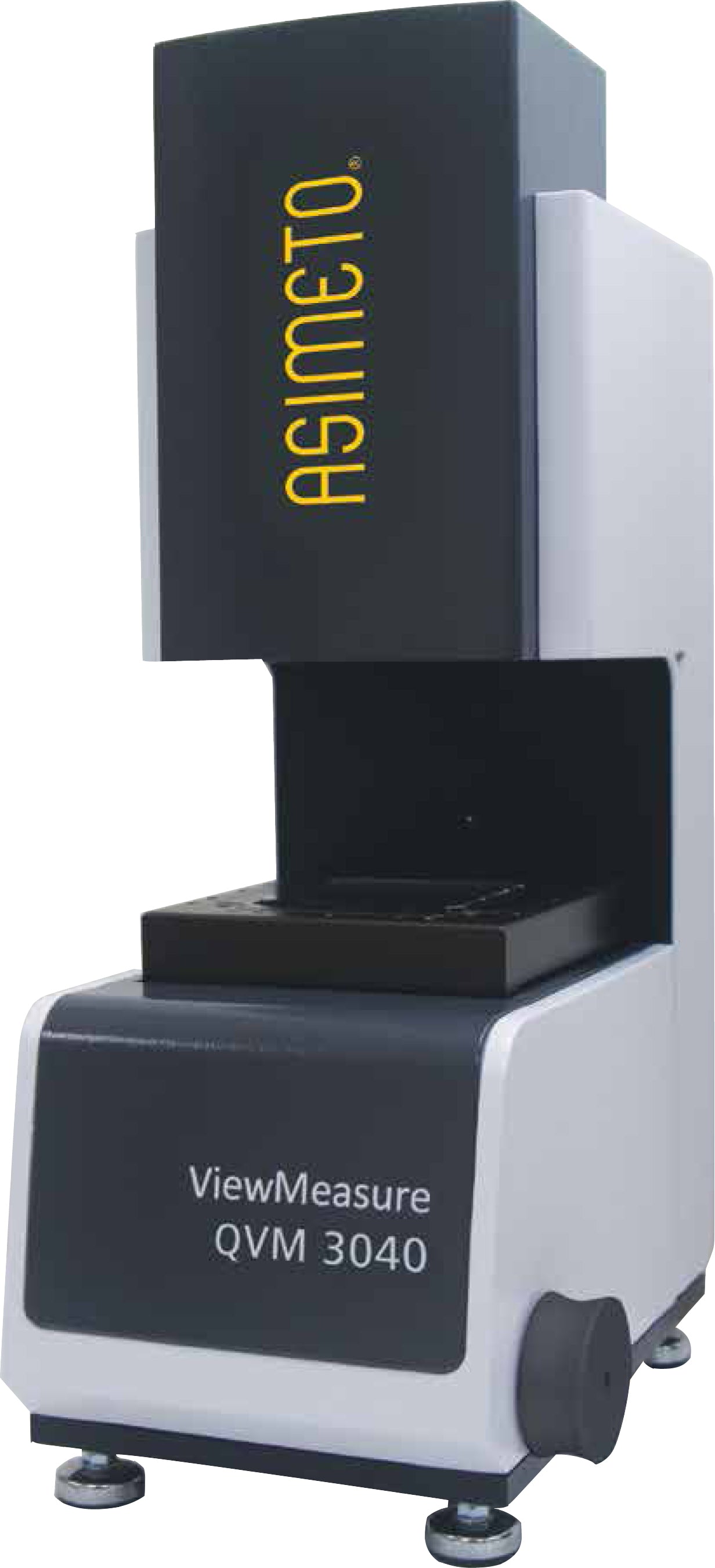

Description
Field of view 42 (x) x 32 (y)
Instantly ready to measure any object within the field of view
• Accurate optical measurement
• Reduced measurement error
• Maximum repeatability of measurement results
SPECIFICATIONS:
SPECIAL EQUIPMENT
Nominal CAD comparison: The nominal image in CAD can be imported in DXF format and compared to the contour of the currently measured component according to predefined tolerances. An overview of accepted and rejected measurements is also available.
CHARACTERISTICS OF OPTICAL PROPERTIES
• Large field of view thanks to the telecentric optical system
• Long focal depth eliminates adjustment
• Minimal deformation
• Elimination of perspective and fluoroscopic errors
CHARACTERISTIC LIGHTING
• Thanks to the vertical light source, a sharp image of the component is ensured
• The type of lighting also ensures a high degree of repeatability of measurements
PART LOCATION
• The measured component can be placed anywhere within the field of view. The component recognition algorithm ensures that it is found and performs measurements according to the specified parameters
HIGH PRECISION
• High accuracy during repeated measurement is ensured by a high-resolution CCD camera, which reduces measurement uncertainty to a minimum

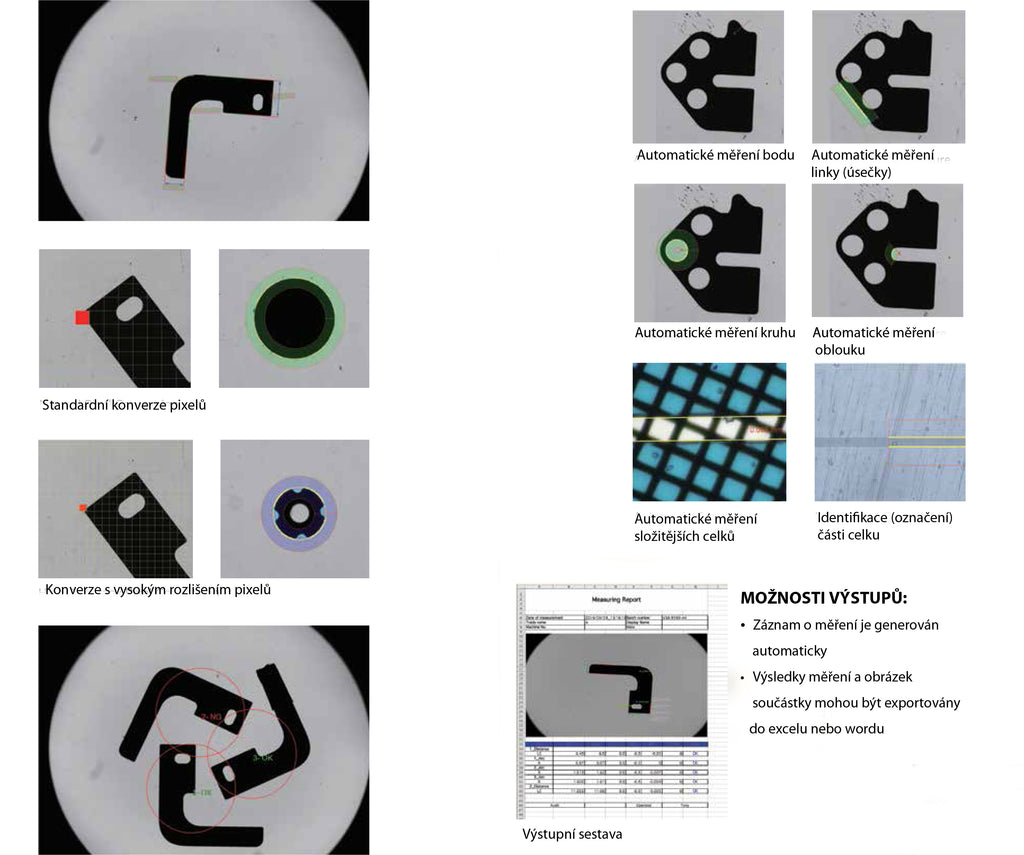

MEASURING SKILLS
• The auto repair system ensures the removal of points that protrude from the part due to surface inaccuracies or rough edges
• Average algorithms are used to calculate geometric elements (line, circle, arc).
MULTIPLE MEASUREMENT OF COMPONENTS
• Thanks to its distinguishing ability, the device finds individual components and ensures their measurement
OUTPUT OPTIONS
• The measurement record is generated automatically
• The measurement results and the image of the component can be exported to excel or word
Instantly ready to measure any object within the field of view
• Accurate optical measurement
• Reduced measurement error
• Maximum repeatability of measurement results
SPECIFICATIONS:
| Enlargement | 0.133 |
| Depth of field | 19 mm |
| X field of view | 42 mm |
| Field of view Y | 32 mm |
| Z axis feed | 30 mm |
| Accuracy | ±4.1+L/50 µm |
| Camera | B/W |
| Surface lighting | White circular light |
| Contour lighting | Green adjustable light |
| Max. workpiece weight | 2 kg |
| Dimensions | 320x222x618 |
| Software | 3M |
| Operating temperature | 23 to 27°C |
| Relative humidity | 20 to 80% |
SPECIAL EQUIPMENT
Nominal CAD comparison: The nominal image in CAD can be imported in DXF format and compared to the contour of the currently measured component according to predefined tolerances. An overview of accepted and rejected measurements is also available.
CHARACTERISTICS OF OPTICAL PROPERTIES
• Large field of view thanks to the telecentric optical system
• Long focal depth eliminates adjustment
• Minimal deformation
• Elimination of perspective and fluoroscopic errors
CHARACTERISTIC LIGHTING
• Thanks to the vertical light source, a sharp image of the component is ensured
• The type of lighting also ensures a high degree of repeatability of measurements
PART LOCATION
• The measured component can be placed anywhere within the field of view. The component recognition algorithm ensures that it is found and performs measurements according to the specified parameters
HIGH PRECISION
• High accuracy during repeated measurement is ensured by a high-resolution CCD camera, which reduces measurement uncertainty to a minimum
MEASURING SKILLS
• The auto repair system ensures the removal of points that protrude from the part due to surface inaccuracies or rough edges
• Average algorithms are used to calculate geometric elements (line, circle, arc).
MULTIPLE MEASUREMENT OF COMPONENTS
• Thanks to its distinguishing ability, the device finds individual components and ensures their measurement
OUTPUT OPTIONS
• The measurement record is generated automatically
• The measurement results and the image of the component can be exported to excel or word
