3520-3.00K - SET M 3

M 3 x 0.5 Thread repair kit

Power Coil coil repair kits contain everything you need to successfully repair damaged coils.

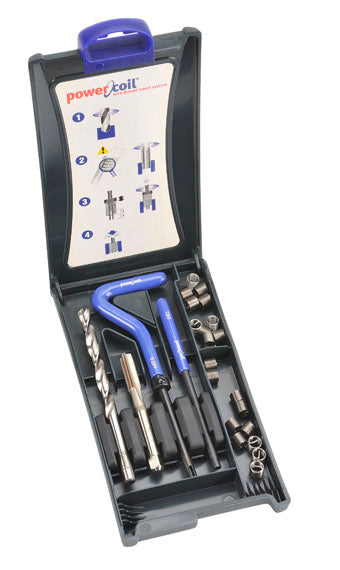

The M 3 set includes: 20 inserts, drill bit 3.2 mm, tap No. II, mounting mandrel and breaker.

Parameters [mm]:

Screw ∅	Pitch	Insert length		Set	Insert	Drill bit ∅	Threader	Mounting mandrel	Breaker
[mm]	[mm]	after installation [mm]		Ord. code	Ord. code	[mm]	Ord. code	Ord. code	Ord. code
2.00	0.40	1.5D	3.00	3520-2.00K	3520-2.00x1.5D	2.10	3520-2.00I	3500-HIT2	3500-TB1
2.20	0.45	1.5D	3.30	3520-2.20K	3520-2.20x1.5D	2.30	3520-2.20I	3500-HIT2	3500-TB2
2.50	0.45	1.5D	3.75	3520-2.50K	3520-2.50x1.5D	2.60	3520-2.50I	3500-HIT3	3500-TB3
3.00	0.50	1.5D	4.50	3520-3.00K	3520-3.00x1.5D	3.20	3520-3.00I	3500-HIT4	3500-TB4
3.50	0.60	1.5D	5.25	3520-3.50K	3520-3.50x1.5D	3.70	3520-3.50I	3500-HIT5	3500-TB5
4.00	0.70	1.5D	6.00	3520-4.00K	3520-4.00x1.5D	4.20	3520-4.00I	3500-HIT6	3500-TB6
5.00	0.80	1.5D	7.50	3520-5.00K	3520-5.00x1.5D	5.20	3520-5.00I	3500-HIT8	3500-TB8
6.00	1.00	1.5D	9.00	3520-6.00K	3520-6.00x1.5D	6.30	3520-6.00I	3500-HIT9	3500-TB9
7.00	1.00	1.5D	10.50	3520-7.00K	3520-7.00x1.5D	7.30	3520-7.00I	3500-HIT10	3500-TB11
8.00	1.25	1.5D	12.00	3520-8.00K	3520-8.00x1.5D	8.30	3520-8.00I	3500-HIT11	3500-TB12
9.00	1.25	1.5D	13.50	3520-9.00K	3520-9.00x1.5D	9.40	3520-9.00I	3500-HIT13	3500-TB12
10.00	1.50	1.5D	15.00	3520-10.00K	3520-10.00x1.5D	10.40	3520-10.00I	3500-HIT13	3500-TB13
11.00	1.50	1.5D	16.50	3520-11.00K	3520-11.00x1.5D	11.40	3520-11.00I	3500-HIT14	3500-TB14
12.00	1.75	1.5D	18.00	3520-12.00K		12.40
