PowercoilSKU: 3520-5.00K
Price:
744,21 Kč bez DPH
Stock:
In stock

Description

M 5 x 0.8 Thread repair kit

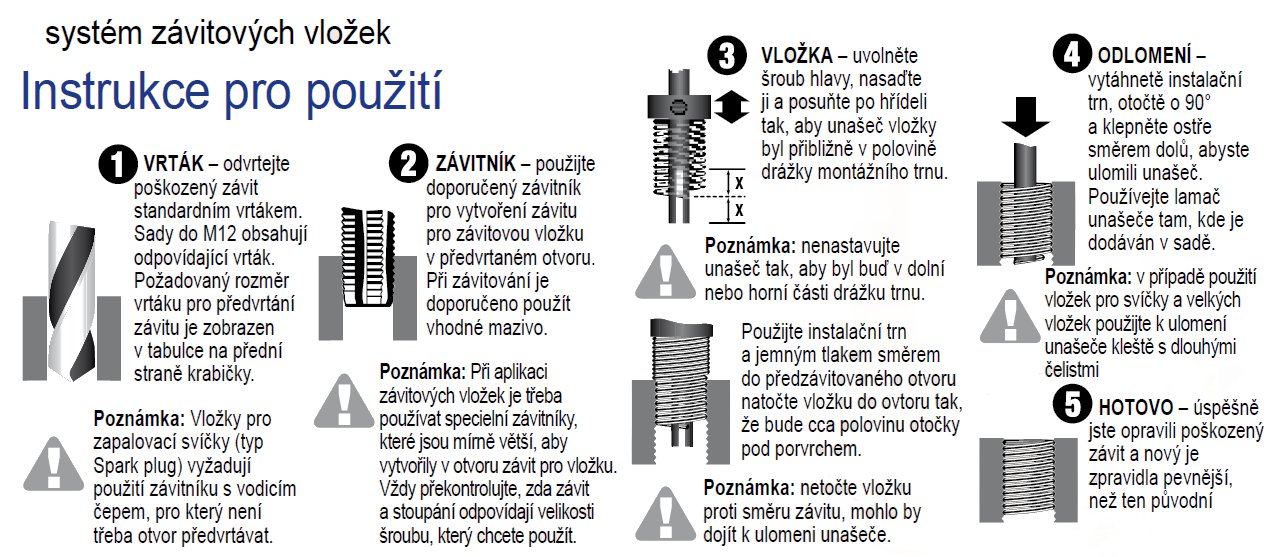

Power Coil coil repair kits contain everything you need to successfully repair damaged coils.

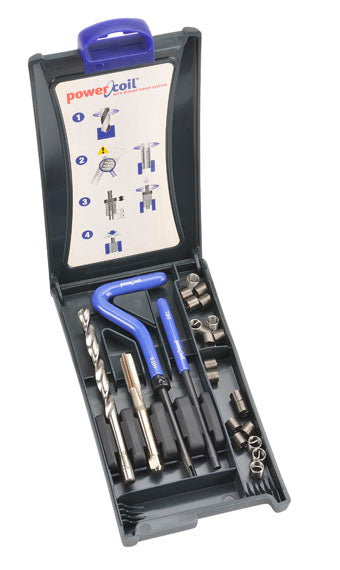

The M 5 set includes: 20 inserts, drill bit 5.2 mm, tap No. II, mounting mandrel and breaker.

Parameters [mm]:
Screw ∅ Pitch Insert length Set Insert Drill bit ∅ Threader Mounting mandrel Breaker
[mm] [mm] after installation [mm] Ord. code Ord. code [mm] Ord. code Ord. code Ord. code
2.00 0.40 1.5D 3.00 3520-2.00K 3520-2.00x1.5D 2.10 3520-2.00I 3500-HIT2 3500-TB1
2.20 0.45 1.5D 3.30 3520-2.20K 3520-2.20x1.5D 2.30 3520-2.20I 3500-HIT2 3500-TB2
2.50 0.45 1.5D 3.75 3520-2.50K 3520-2.50x1.5D 2.60 3520-2.50I 3500-HIT3 3500-TB3
3.00 0.50 1.5D 4.50 3520-3.00K 3520-3.00x1.5D 3.20 3520-3.00I 3500-HIT4 3500-TB4
3.50 0.60 1.5D 5.25 3520-3.50K 3520-3.50x1.5D 3.70 3520-3.50I 3500-HIT5 3500-TB5
4.00 0.70 1.5D 6.00 3520-4.00K 3520-4.00x1.5D 4.20 3520-4.00I 3500-HIT6 3500-TB6
5.00 0.80 1.5D 7.50 3520-5.00K 3520-5.00x1.5D 5.20 3520-5.00I 3500-HIT8 3500-TB8
6.00 1.00 1.5D 9.00 3520-6.00K 3520-6.00x1.5D 6.30 3520-6.00I 3500-HIT9 3500-TB9
7.00 1.00 1.5D 10.50 3520-7.00K 3520-7.00x1.5D 7.30 3520-7.00I 3500-HIT10 3500-TB11
8.00 1.25 1.5D 12.00 3520-8.00K 3520-8.00x1.5D 8.30 3520-8.00I 3500-HIT11 3500-TB12
9.00 1.25 1.5D 13.50 3520-9.00K 3520-9.00x1.5D 9.40 3520-9.00I 3500-HIT13 3500-TB12
10.00 1.50 1.5D 15.00 3520-10.00K 3520-10.00x1.5D 10.40 3520-10.00I 3500-HIT13 3500-TB13
11.00 1.50 1.5D 16.50 3520-11.00K 3520-11.00x1.5D 11.40 3520-11.00I 3500-HIT14 3500-TB14
12.00 1.75 1.5D 18.00 3520-12.00K 12.40
