Description

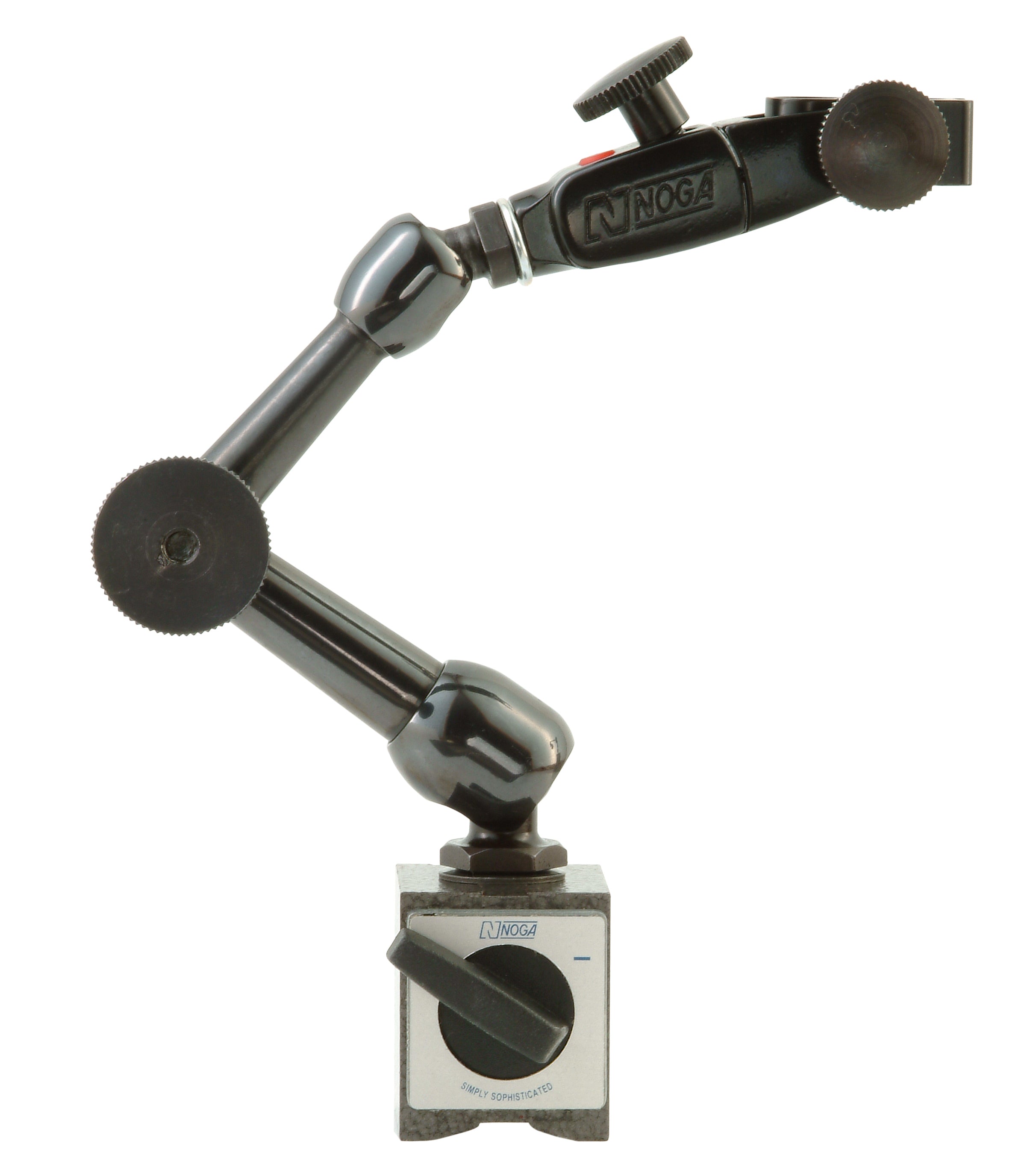

With central locking, fine adjustment for clamping, arm length + clamping 178.0 mm
M5 threaded arm screwed into the magnetic base.

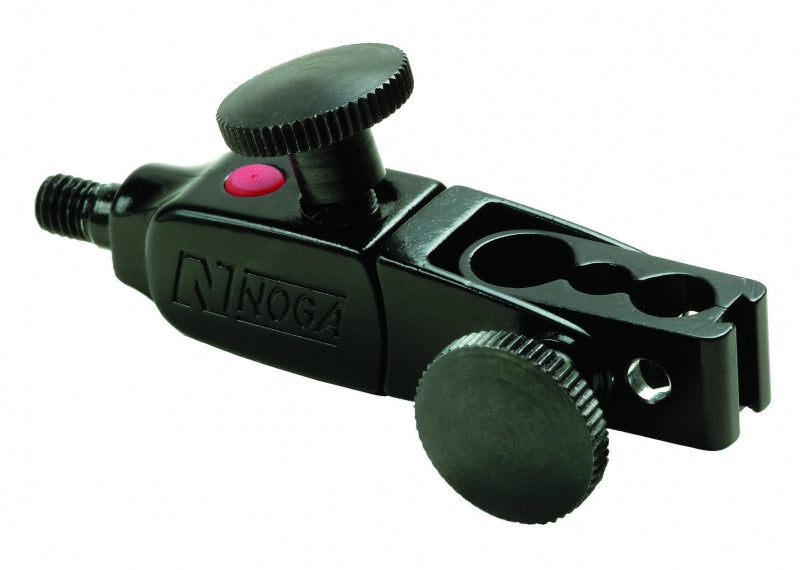

UP001000 - CLAMPING (formerly FA1500)
NF100000 - ARM (formerly NF1010)
ZA000011 - BASE (formerly NF3778)

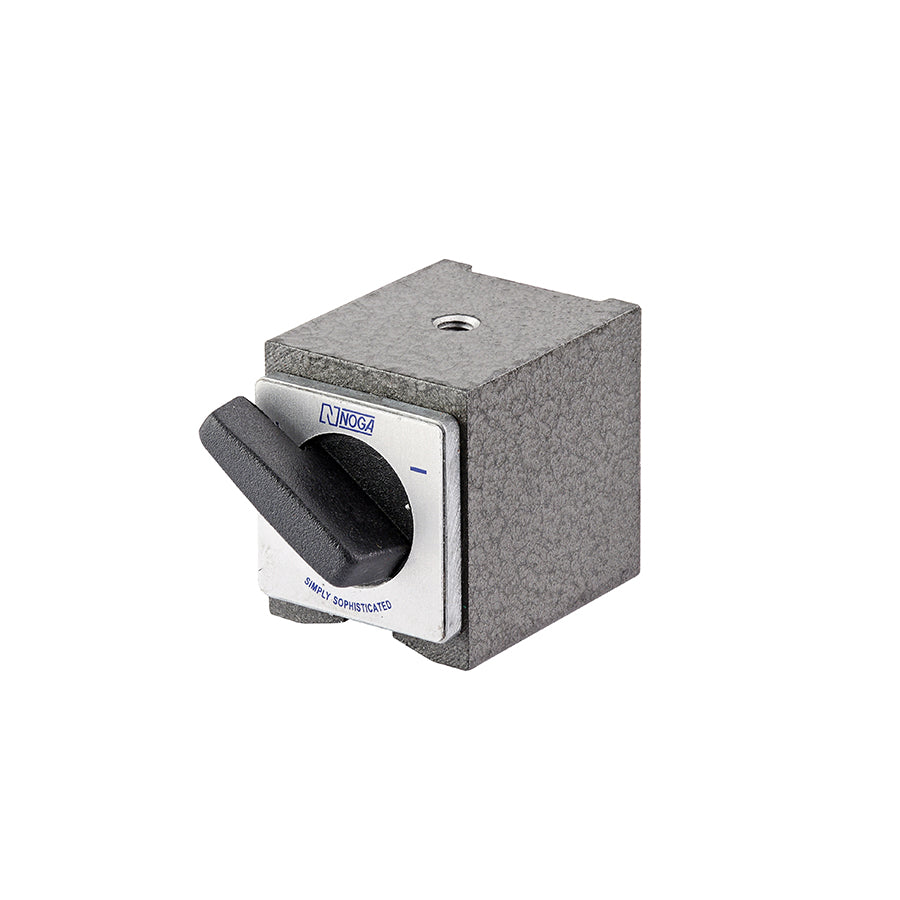

ZA000010 - BASE (formerly NF0037)
UP001100 - CLAMPING (formerly FA1100)
M5 threaded arm screwed into the magnetic base.
| STAND | SHOULDER | CLAMPING | BASE | ||||
|---|---|---|---|---|---|---|---|
| L1+L2+L3 [mm] | L1 | L2 | diameter | [N] | W | L | H |
| 178.0 | 56 | 51 | 3/8; 6; 8; dovetail | 320 | 30 | 35 | 40 |
Consists of
ZA000010 - BASE (formerly NF0037)UP001000 - CLAMPING (formerly FA1500)
NF100000 - ARM (formerly NF1010)
Products applicable to this type
ZA000012 - BASE (formerly NF1937)ZA000011 - BASE (formerly NF3778)
ZA000010 - BASE (formerly NF0037)
UP001100 - CLAMPING (formerly FA1100)
