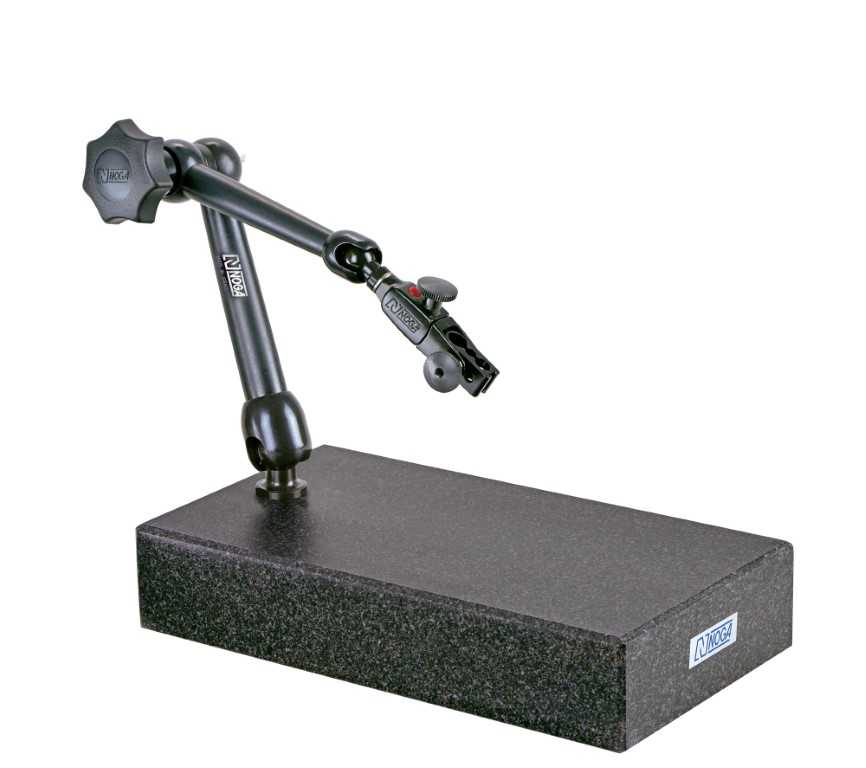

MT2300 - MEASURING TABLE WITH GRANITE. PLATE

MA stand with central locking and fine adjustment, (L3 637 mm), granite plate MT13 (15.6 kg)

NOGA stand with granite base and MA arm with fine build, arm length + clamp 637 mm.

The base is made of high quality hardened granite which will give you:

• - high accuracy and stability, resistance to distortion and additionally guarantees increased measurement accuracy
• - no rust or corrosion - no special maintenance required
• - wear resistance - long-term service life guaranteed
• - non-magnetic material
• - flatness less than < 2 µm - DIN 876
• - weight 15.60 kg

The MA arm is the most sought after arm in the industry due to its stability and ease of use.

• - massive 3D articulated arm with central locking.
• - fine adjustment in the upper part of the arm.
• - clamps diameters 6 mm, 8 mm, 3/8".
• - the possibility of clamping with a dovetail.
• - quick and easy adjustment of gauges to the desired position.
• - black design.

The M10 threaded arm is screwed into the granite base.

STAND	SHOULDER		CLAMPING	BASE
L1+L2+L3 [mm]	L1	L2	diameter	W	L	H
637.0	286.5	222.5	3/8; 6; 8; dovetail	250	400	50
