MT2200 - MEASURING TABLE WITH GRANITE. PLATE

MG stand with central locking and fine adjustment, (L3 317 mm), granite plate MT12 (5.7 kg)

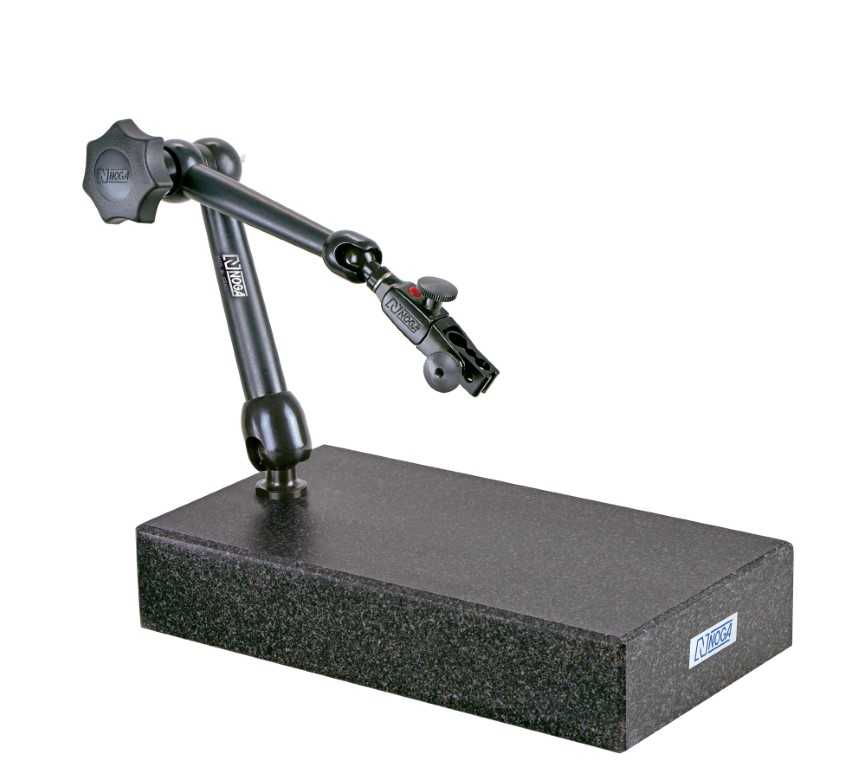

NOGA stand with granite base and fine-set MG arm, arm length + clamp 317 mm.

The base is made of high quality hardened granite which will give you:

• - high accuracy and stability, resistance to distortion and additionally guarantees increased measurement accuracy
• - no rust or corrosion - no special maintenance required
• - wear resistance - long-term service life guaranteed
• - non-magnetic material
• - flatness less than < 2 µm - DIN 876
• - weight 5.70 kg

The MG arm is the most sought after arm in the industry due to its stability and ease of use.

• - massive 3D articulated arm with central locking.
• - fine adjustment in the upper part of the arm.
• - clamps diameters 6 mm, 8 mm, 3/8".
• - the possibility of clamping with a dovetail.
• - quick and easy adjustment of gauges to the desired position.
• - black design.

The M8 threaded arm is screwed into the granite base.

STAND	SHOULDER		CLAMPING	BASE
L1+L2+L3[mm]	L1	L2	diameter	W	L	H
317.0	133	113	3/8; 6; 8; dovetail	140	260	50
