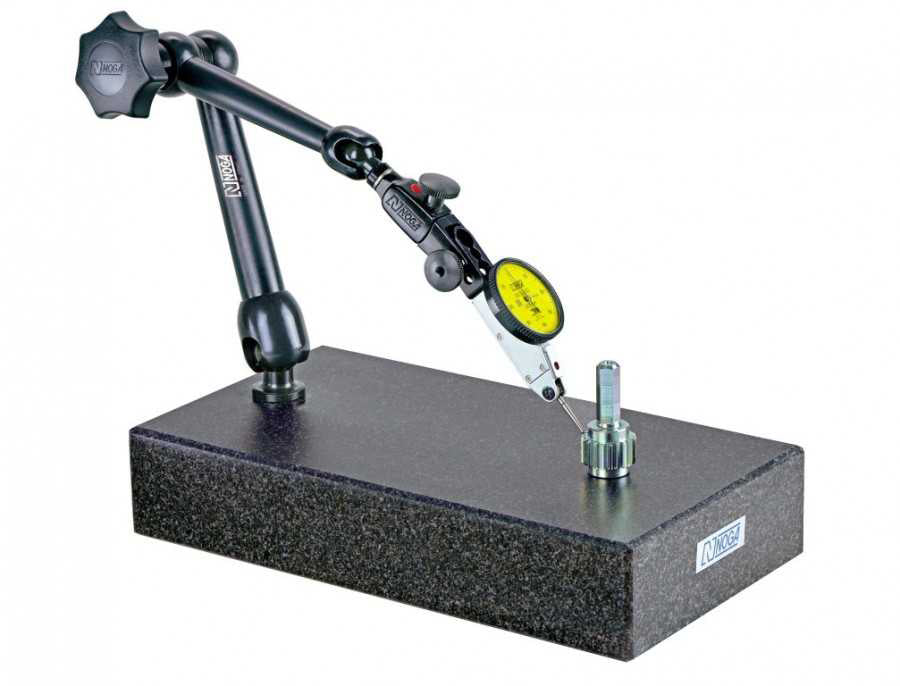

MT2000 - MEASURING TABLE WITH GRANITE. PLATE

DG stand with central locking and fine adjustment, (L3 282 mm), granite plate MT1 (2.2 kg)

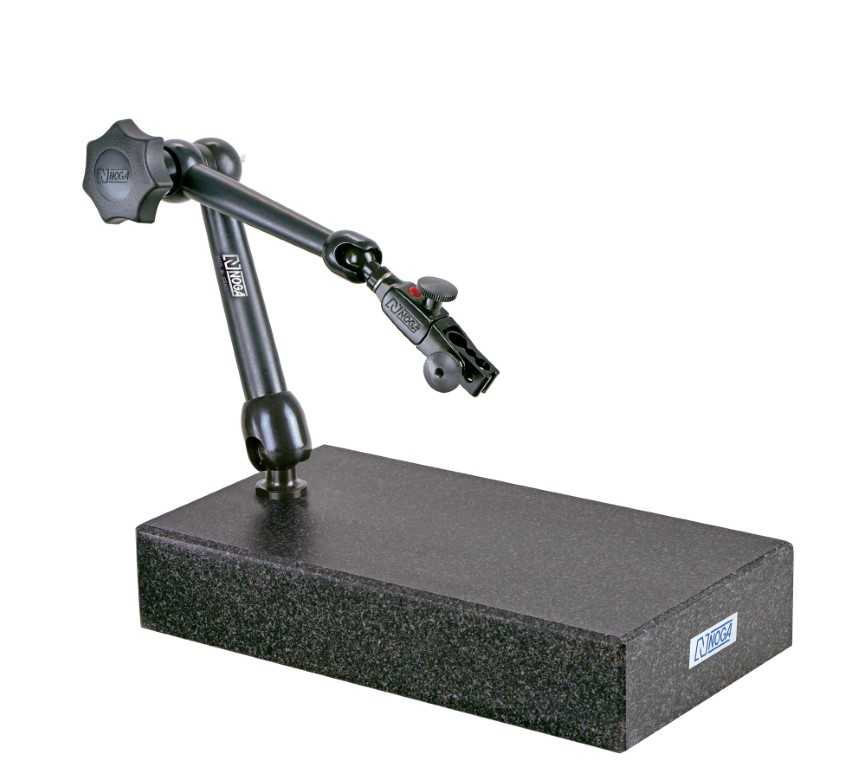

NOGA stand with granite base and DG arm with fine build, arm length + clamp 282 mm.

The base is made of high quality hardened granite which will give you:

• - high accuracy and stability, resistance to distortion and additionally guarantees increased measurement accuracy
• - no rust or corrosion - no special maintenance required
• - wear resistance - long-term service life guaranteed
• - non-magnetic material
• - flatness less than < 2 µm - DIN 876
• - weight 2.20 kg

Due to its stability and ease of use, the DG arm is the most sought after arm in the industry.

• - massive 3D articulated arm with central locking.
• - fine adjustment in the upper part of the arm.
• - clamps diameters 6 mm, 8 mm, 3/8".
• - the possibility of clamping with a dovetail.
• - quick and easy adjustment of gauges to the desired position.
• - black design.

The M8 threaded arm is screwed into the granite base.

STAND	SHOULDER		CLAMPING	BASE
L1+L2+L3[mm]	L1	L2	diameter	W	L	H
282.0	110	101	3/8; 6; 8; dovetail	100	150	50
