Description

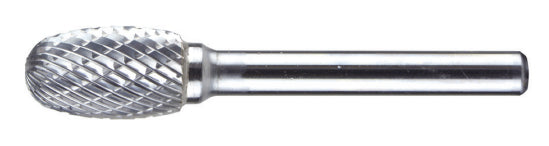

TYPE E - ELLIPTICAL CUTTER ∅ 6 mm
NOGA technical carbide end mills are made from high quality materials that deliver consistent performance with longer tool life.
They are suitable for manual processing of difficult-to-machine materials such as stainless steel, steel, cast iron and high-temperature alloys.
Material: cemented carbide (tungsten)
Clamping type: cylindrical shank
Parameters (mm):
NOGA technical carbide end mills are made from high quality materials that deliver consistent performance with longer tool life.
They are suitable for manual processing of difficult-to-machine materials such as stainless steel, steel, cast iron and high-temperature alloys.
Material: cemented carbide (tungsten)
Clamping type: cylindrical shank
Parameters (mm):
| cutter diameter | shank diameter | cutter length | length | order code |
|---|---|---|---|---|
| D1 | D2 | L2 | L1 | |
| 6 | 6 | 9.5 | 54 | CB5606 |
| 8 | 6 | 13 | 58 | CB5608 |
| 10 | 6 | 16 | 60 | CB5610 |
| 12 | 6 | 22 | 66 | CB5612 |
| 16 | 6 | 25 | 69 | CB5616 |
