Description
Range 1mm, Division 0.001mm, Deviation 0.2mm, Reading 0-200, Accuracy ±0.005mm
Properties:
Dial diameter 58 mm
Easy to read scale
With stones
Tolerance marker
Exchangeable cover with lug
Tachometer
Shaft diameter 8 mm
Basic accessories
Exchangeable cover with lug
Warranty card, instructions for use, calibration certificate
Packaging: foam packaging
Properties:
Dial diameter 58 mm
Easy to read scale
With stones
Tolerance marker
Exchangeable cover with lug
Tachometer
Shaft diameter 8 mm
Basic accessories
Exchangeable cover with lug
Warranty card, instructions for use, calibration certificate
Packaging: foam packaging

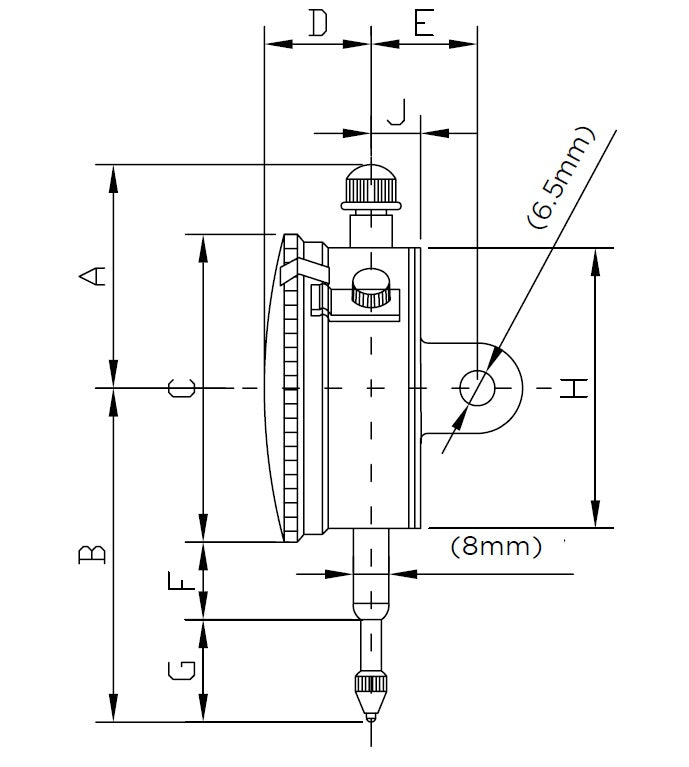

| SIZE | AND | B | C | D | E | F | G | H | J |
|---|---|---|---|---|---|---|---|---|---|
| [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] |
| 1 | 45 | 62 | 58 | 16.2 | 19.3 | 18.3 | 15 | 53.5 | 8.1 |
