Description

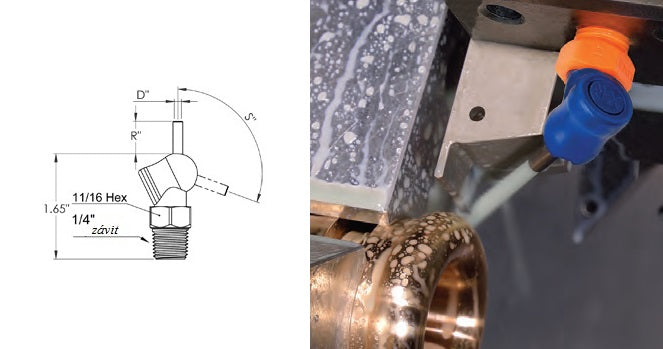

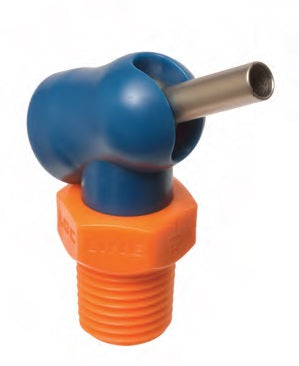

1/4" thread, nozzle diameter 2.2mm, metal neck overhang 12.7mm
High-pressure nozzles allow cooling under pressure up to 1000 PSI / 68.95 bar / 68.04 atm , which greatly facilitates modern machining. The quality of the high-pressure nozzles corresponds to the high standard of the LOC-LINE brand.
XR (Extended Rotation) nozzles offer a wide angle of inclination and the ability to aim the liquid stream in a horizontal position.
*includes an auxiliary plastic lever for easy and precise fixing of the metal nozzle position
High-pressure nozzles allow cooling under pressure up to 1000 PSI / 68.95 bar / 68.04 atm , which greatly facilitates modern machining. The quality of the high-pressure nozzles corresponds to the high standard of the LOC-LINE brand.
XR (Extended Rotation) nozzles offer a wide angle of inclination and the ability to aim the liquid stream in a horizontal position.
*includes an auxiliary plastic lever for easy and precise fixing of the metal nozzle position
| NOZZLE DIAMETER (D) | NOZZLE OVERFLOW (R) | NOZZLE TILT ANGLE (S) |
|---|---|---|
| [mm] | [mm] | [°] |
| 2.2 | 12.7 | 110 |
