Description

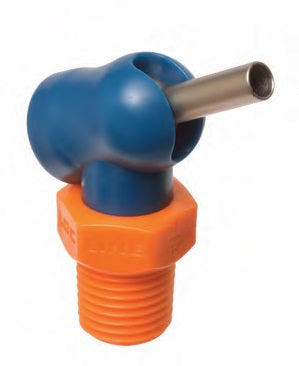

1/4" thread, nozzle diameter 4.1mm, metal neck does not extend beyond the plastic body
High-pressure nozzles allow cooling under pressure up to 1000 PSI / 68.95 bar / 68.04 atm , which greatly facilitates modern machining. The quality of the high-pressure nozzles corresponds to the high standard of the LOC-LINE brand.
XR (Extended Rotation) nozzles offer a wide angle of inclination and the ability to aim the liquid stream in a horizontal position.
High-pressure nozzles allow cooling under pressure up to 1000 PSI / 68.95 bar / 68.04 atm , which greatly facilitates modern machining. The quality of the high-pressure nozzles corresponds to the high standard of the LOC-LINE brand.
XR (Extended Rotation) nozzles offer a wide angle of inclination and the ability to aim the liquid stream in a horizontal position.

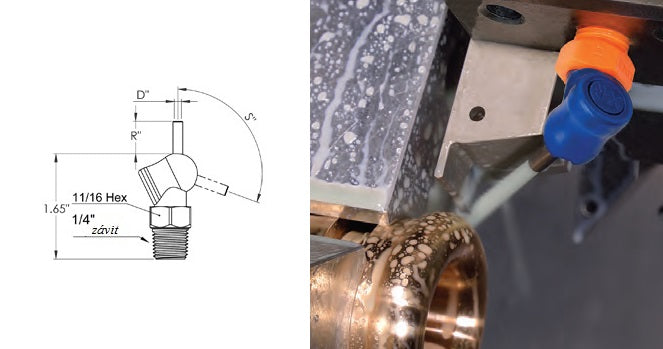

| NOZZLE DIAMETER (D) | NOZZLE OVERFLOW (R) | NOZZLE TILT ANGLE (S) |
|---|---|---|
| [mm] | [mm] | [°] |
| 4.1 | 0.0 | 102 |
