Description
Countersink 20.50 mm, CARBIDE AlTiN, DIN 335 C
The NogaMT countersink with 3 carbide edges is made of Tvrdok for greater strength,
Ideal for dry machining - high-speed cutting of treated steels and materials up to 67 Rc.
Material: Abrasive tough steel Carbide with AlTiN coating.
Hardness: 60 Rc
Angle: 90 degrees
Parameters (mm):
The NogaMT countersink with 3 carbide edges is made of Tvrdok for greater strength,
Ideal for dry machining - high-speed cutting of treated steels and materials up to 67 Rc.
Material: Abrasive tough steel Carbide with AlTiN coating.
Hardness: 60 Rc
Angle: 90 degrees
Parameters (mm):

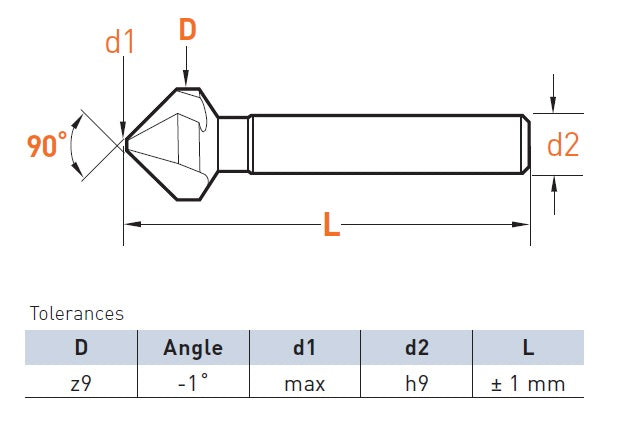

| Large ratio | Small diameter | Stalk | Length | order code |
|---|---|---|---|---|
| D | d1 | d2 | L | |
| 6.30 | 1.50 | 5.00 | 45.00 | CM1604|
| 8.30 | 2.00 | 6.00 | 50.00 | CM1606 |
| 10.40 | 2.50 | 6.00 | 50.00 | CM1608 |
| 12.40 | 2.80 | 8.00 | 56.00 | CM1610 |
| 16.50 | 3.20 | 10.00 | 60.00 | CM1612 |
| 20.50 | 3.50 | 10.00 | 63.00 | CM1613 |
| 25.00 | 3.80 | 10.00 | 67.00 | CM1614 |
