Description
Countersink 25.4 mm, HSSE Co, DIN 335 C
Better wear resistance in hardness and toughness compared to HSS.
Longer service life and faster deburring / countersinking.
Material: Abrasive tough steel HSSE Co .
Hardness: 60 Rc
Angle: 90 degrees
Parameters (mm):
Better wear resistance in hardness and toughness compared to HSS.
Longer service life and faster deburring / countersinking.
Material: Abrasive tough steel HSSE Co .
Hardness: 60 Rc
Angle: 90 degrees

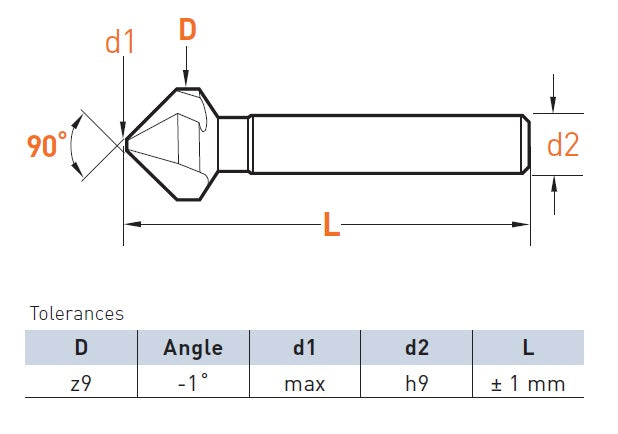

Parameters (mm):
| Large ratio | Small diameter | Stalk | Length | order code |
|---|---|---|---|---|
| D | d1 | d2 | L | |
| 5.30 | 1.50 | 4.00 | 40.00 | CM1204 |
| 6.30 | 1.50 | 5.00 | 45.00 | CM1209 |
| 6.35 | 1.50 | 6.35 | 45.00 | CM1210 |
| 7.93 | 2.00 | 6.35 | 45.00 | CM1214 |
| 8.30 | 2.00 | 6.00 | 50.00 | CM1216 |
| 9.52 | 2.50 | 6.35 | 50.00 | CM1219 |
| 10.40 | 2.50 | 6.00 | 50.00 | CM1221 |
| 12.40 | 2.80 | 8.00 | 56.00 | CM1225 |
| 12.70 | 2.90 | 6.35 | 50.00 | CM1227 |
| 15.00 | 3.20 | 10.00 | 60.00 | CM1230 |
| 15.87 | 3.20 | 9.52 | 60.00 | CM1232 |
| 16.50 | 3.20 | 10.00 | 60.00 | CM1233 |
| 19.05 | 3.50 | 9.52 | 60.00 | CM1237 |
| 20.50 | 3.50 | 10.00 | 63.00 | CM1238 |
| 25.00 | 3.80 | 10.00 | 67.00 | CM1241 |
| 25.40 | 3.80 | 9.52 | 70.00 | CM1243 |
| 31.00 | 4.20 | 12.00 | 71.00 | CM1249 |
