Description
Three-point countersink 20.5 mm, HSS TiN, DIN 335 C
Material: High-performance high-speed steel HSS TiN.
Hardness: 60 Rc
Angle: 90 degrees
Material: High-performance high-speed steel HSS TiN.
Hardness: 60 Rc
Angle: 90 degrees

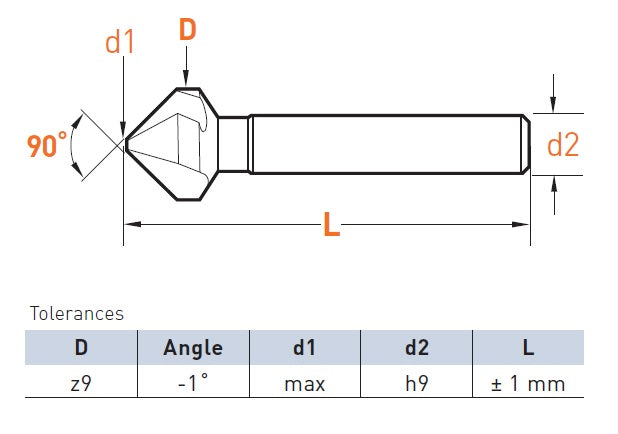

| Large ratio | Small diameter | Stalk | Length |
|---|---|---|---|
| D | d1 | d | L |
| 20.50 | 3.50 | 10.00 | 63.00 |
| Large ratio | Small diameter | Stalk | Length | order code |
|---|---|---|---|---|
| D | d1 | d2 | L | |
| 5.30 | 1.50 | 4.00 | 40.00 | CM1304 |
| 6.30 | 1.50 | 5.00 | 45.00 | CM1309 |
| 8.30 | 2.00 | 6.00 | 50.00 | CM1316 |
| 10.40 | 2.50 | 6.00 | 50.00 | CM1321 |
| 12.40 | 2.80 | 8.00 | 56.00 | CM1324 |
| 15.00 | 3.20 | 10.00 | 60.00 | CM1328 |
| 16.50 | 3.20 | 10.00 | 60.00 | CM1331 |
| 20.50 | 3.50 | 10.00 | 63.00 | CM1335 |
| 25.00 | 3.80 | 10.00 | 67.00 | CM1337 |
| 31.00 | 4.20 | 12.00 | 71.00 | CM1344 |
